Resilient-seated knife-gate valves for wastewater shut-off and control — two designs for different installation requirements. The ZETA® is a fully flanged valve with adjustable sealing, available from DN 50 to DN 1400, for use as intermediate or end-of-line valve at full operating pressure. The MONO is a compact monoblock design with completely chambered knife and hand lever operation, ideal for space-constrained installations. Both feature free flow passage to prevent sedimentation and integrated scraper systems for reliable operation in demanding wastewater environments.

Need a quote or technical advice?

Send Inquiry Call +359 2 917 93 10

▸ Key Features

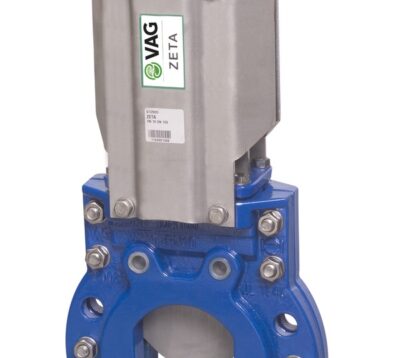

VAG ZETA® — Fully Flanged Knife-Gate Valve

  • Resilient-seated with sealing in both flow directions
  • Free flow passage prevents sedimentation — smooth, unimpeded body passage
  • Integrated scraper system on both sides of the knife for continuous cleaning
  • Enlarged bottom seal and metallic limit stop ensure reliable tightness
  • Horizontal sealing adjustable during operation and replaceable with valve installed in pipeline
  • Full-flange design for use as wafer type or pipeline end installation without additional counter flange at full differential pressure
  • DN 700–1400: double quad ring profile with integrated PTFE sliding rails for reduced operating forces

VAG ZETA®control — Control Valve Variant

  • Integrated stainless steel control orifice with optimised control characteristic
  • Free bottom passage for combined shut-off and flow regulation
  • Available for wastewater and air regulation applications

VAG MONO — Compact Monoblock Knife-Gate Valve

  • Compact one-piece monoblock housing — completely chambered knife
  • New sealing principle — no horizontal sealing required
  • Single maintenance-free shaft seal with additional scrapers for extended service life
  • Drain plug connection (G ¼”) as standard prevents clogging
  • Low torque operation — no extra gearbox required
  • Hand lever operation with clamping lever to fix knife in final position
▸ Technical Specifications
Parameter VAG ZETA® VAG MONO
Function Shut-off valve (ZETA®control: control valve) Shut-off valve
Nominal diameters DN 50 – 1400 (ZETA®control: DN 100 – 600) —
Nominal pressure PN 10 PN 10
Face-to-face length EN 558, basic series 20 (DIN 3202 / K1) —
Flange connections EN 1092-2, PN 10 EN 1092-2, PN 10
Sealing Resilient-seated, both flow directions Chambered O-ring, preferred flow direction
Flow passage Free flow passage, unimpeded body Free flow passage, chambered knife
Installation Wafer type or pipeline end, variable position Upright, 10:00 – 2:00 o’clock; counter flange required for end-of-line
Corrosion protection Internally and externally epoxy coated Internally and externally epoxy coated
▸ Materials
Component VAG ZETA® VAG MONO
Body Ductile iron EN-GJS-400-15 (GGG-40) Ductile iron EN-GJS-400-15 (GGG-40)
Knife Stainless steel Stainless steel A2
Connecting parts Stainless steel Stainless steel A2 (DIN EN ISO 3506)
Guide tube / fork piece — Stainless steel 1.4301
Sealing elements Resilient seat; DN ≥ 700: double quad ring + PTFE sliding rails Chambered O-ring, NBR
Flange ring — Steel S235 JRG2
Sliding guides Flexible plastic sliding rails (DN ≥ 700: PTFE) —
▸ Available Variants
Variant Description
VAG ZETA® Shut-Off (DN 50 – 600)
With handwheel Non-rising stem, standard configuration
With hand lever Clamping lever to fix knife in final position
With electric actuator Rising stem, for automated operation
With pneumatic actuator Rising stem, double-acting
VAG ZETA® Shut-Off (DN 700 – 1400)
For VAG REMO system Rising stem, remote control operation via handwheel
With electric actuator (AUMA SA/SAR) Rising stem, for large-diameter automated operation
With pneumatic actuator (Festo DLP) For large-diameter pneumatic operation
VAG ZETA®control (DN 100 – 600)
With handwheel — wastewater Non-rising stem, integrated SS control orifice
With handwheel — air regulation Non-rising stem, optimised for air flow control
With electric actuator (AUMA SA/SAR) Rising stem, automated flow regulation
VAG MONO
With hand lever Compact monoblock, clamping lever for final position
▸ Applications
  • Wastewater treatment plants — shut-off and flow regulation
  • Dams and hydropower installations
  • Power plants — cooling water and process lines
  • Industrial applications — process water, sludge, slurries
  • Storm water and flood management systems
  • Air regulation in aeration systems (ZETA®control)
