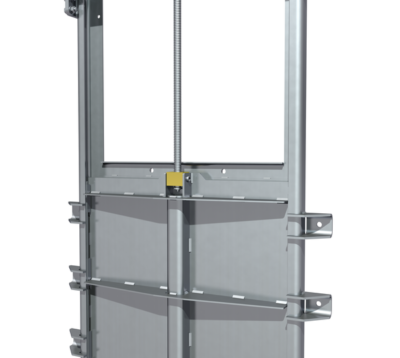

Stainless steel penstocks for shut-off and control in wastewater applications — two designs for different requirements. The EROX®plus features a patented sliding wedge system for technically demanding applications requiring maximum leak-tightness. The ERI®plus offers a compact design with separate sliding and sealing system for universal plant construction. Both are wall-mounted with square openings and suitable for use in wastewater systems, stormwater retention basins, flood protection and power plants.
Need a quote or technical advice?
▸ Key Features
VAG EROX®plus — Technically Demanding Applications
- Patented VAG sliding wedge system — combines sliding guide with maximum leak-tightness of a wedge system (sizes 400×400 to 1200×1200)
- Sliding system between gate and frame (sizes 150×150 to 300×300)
- Vibration-free guiding of the gate over the entire travel; usable in intermediate positions as control valve
- Improved leak-tightness by interlocking system between gate and top traverse (sizes 700×700 to 1800×1800)
- Integrated and chambered profiled seal; seal between valve and wall mounted ready for operation
- Non-rising stem with integrated stem bearing and rotatable stem nut
- Available with open or closed (self-contained) frame design for wall mounting with anchors
- Sturdy welded stainless steel structure
VAG ERI®plus — Universal Plant Construction
- Compact design with closed (self-contained) frame for wall mounting with anchors
- Separate sliding and sealing system — four-side sealing
- Vibration-free guiding of the gate over the entire travel; usable in intermediate positions as control valve
- Integrated and chambered profiled seal; seal between valve and wall mounted ready for operation
- Non-rising stem with rotatable stem nut
- Sturdy welded stainless steel structure; components dip pickled and passivated
▸ Technical Specifications
▸ Materials
Both the EROX®plus and ERI®plus are manufactured in stainless steel. The ERI®plus components are dip pickled and passivated. Both feature sturdy welded construction. For detailed material specifications and grades, please contact us or refer to the VAG technical datasheets (KAT-A 2452 / KAT-A 2453).
▸ Available Variants
▸ Actuation Options
Both penstocks are available with handwheel, electric actuator, pneumatic actuator, or the VAG REMO remote control operation system.
▸ Applications
- Municipal wastewater treatment plants
- Industrial sewage treatment plants
- Stormwater retention basins
- Flood and damage protection
- Water treatment plants (ERI®plus)
- Power plants (EROX®plus)
